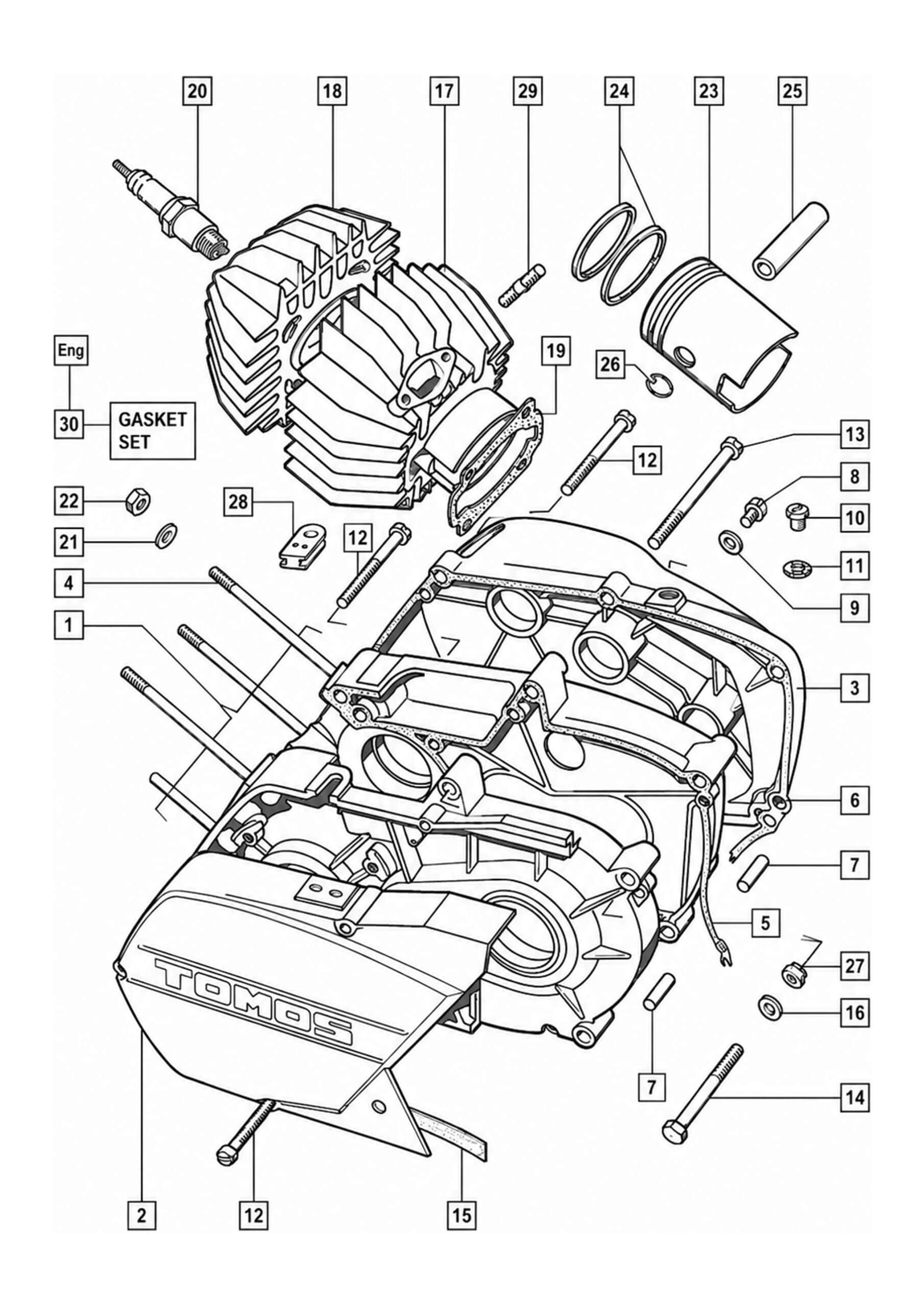

Exploded view Tomos A3 – Motor
| Product | Onderdeelnummer | f | |
| 1 | 219627 | Carterset zwart | |
| 2 | 209026 | 0 | |
| 2 | 217539 | 0 | |
| 2 | 222214 | Vliegwieldeksel zwart | |
| 3 | 209023 | Carterdeksel | |
| 3 | 217206 | Carterdeksel | |
| 4 | 205386 | Draadeind | |
| 5 | 219368 | Middencarter pakking | |
| 6 | 209084 | 0 | |
| 7 | 37290 | Passtift | |
| 7 | 37290 | Passtift | |
| 9 | 44581 | Fibberring 6×12 | |
| 10 | 27239 | Bout M8x10 | |
| 11 | 44582 | Fibberring 8×14 | |
| 12 | 27082 | M6x25 | |
| 13 | 27041 | M6x65 | |
| 14 | 26041 | Bout M8x65 | |
| 14 | 26043 | Bout M8x1x80 | |
| 15 | 213979 | Vliegwieldeksel pakking | |
| 16 | 31933 | Sluitring M8 | |
| 17 | 0 | 0 | |
| 17 | 222708 | 0 | |
| 18 | 217123 | 0 | |
| 19 | 202395 | 0 | |
| 20 | 44511 | Bougie B6HS | |
| 21 | 44154 | Sluitring M7 | |
| 22 | 0 | 0 | |
| 23 | 0 | 0 | |
| 23 | 0 | 0 | |
| 23 | 0 | 0 | |
| 23 | 0 | 0 | |
| 24 | 0 | 0 | |
| 24 | 0 | 0 | |
| 25 | 0 | 0 | |
| 26 | 0 | 0 | |
| 27 | 0 | ||
| 28 | 0 | 0 | |
| 29 | 0 | 0 | |
| 30 | 0 | 0 | |
|
Engine 222461 MOTORBLOK CPL |
|||
| Nummer | Onderdeelnummer | Productnaam |
|---|---|---|
| 1 | 219627 | Carterset zwart |
